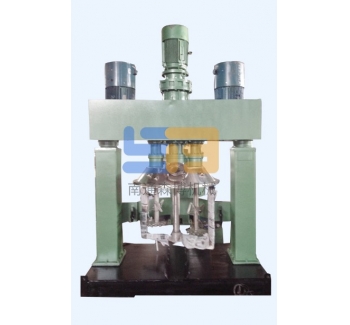

Structural adhesive production equipment
Rotation and revolution, stirring and kneading, stirring without dead corners, viscosity 0-1.5 million cp; Both laboratory and industrial grade processing capacities up to 8000L are acceptable; Negative pressure -0.098Mpa can achieve so much, with high vacuum retention; Temperature controllable, with an accuracy of ± 5 ℃; Low speed kneading, stirring, and high-speed dispersion are carried out simultaneously in one material cylinder Multiple mixing forms and configurations: door frame type, paddle type, dispersing disc, bow tie, etc; Discharge methods: extrusion discharge, positive extrusion discharge, pump conveying; Suitable for various industries, including liquid/liquid, solid/liquid, paste/paste, powder/paste, as well as materials with large density and proportion differences, medium to high viscosity (tens of thousands)
Rotation and revolution, stirring and kneading, stirring without dead corners, viscosity 0-1.5 million cp; Both laboratory and industrial grade processing capacities up to 8000L are acceptable; Negative pressure -0.098Mpa can achieve so much, with high vacuum retention; Temperature controllable, with an accuracy of ± 5 ℃; Low speed kneading, stirring, and high-speed dispersion are carried out simultaneously in one material cylinder
Multiple mixing forms and configurations: door frame type, paddle type, dispersing disc, bow tie, etc; Discharge methods: extrusion discharge, positive extrusion discharge, pump conveying;
Suitable for production processes in various industries, including liquid/liquid, solid/liquid, paste/paste, powder/paste, as well as materials with high density, proportion differences, and medium to high viscosity (tens of thousands to hundreds of thousands of centipedes); Special process conditions, such as explosion-proof, high temperature resistance, wear resistance, corrosion resistance, etc., can be customized.
| model | Volume L | Feeding volume L | Motor power KW | Mixing speed rpm | Dispersion speed rpm | vacuum degree |
| QJB-300 | 300 | 240 | 11、7.5、11 | 33 | 0~980×2 | ≤-0.98MPa |
| QJB-600 | 600 | 450 | 11、18.5、11 | 33 | 0~980×2 | ≤-0.98MPa |
| QJB-1100 | 1100 | 900 | 37、22、37 | 23 | 0~980×2 | ≤-0.98MPa |
| QJB-5000 | 5000 | 4000 | 45、30、45 | 23 | 0~980×2 | ≤-0.98MPa |
| QJB-8000 | 8000 | 6500 | 45、30、45 | 23 | 0~980×2 | ≤-0.98MPa |
| Customizable according to user needs | ||||||
